OptoCheck Plus Auto-Refractor/Keratometer, a Part of This VisionChek Digital Exam Suite, combines technology with Ease at the core of your Examination.
OptoChek Plus Auto Refractor/Keratometer is fast and simple to use; measuring objective spherical and cylindrical refractive errors and keratometry.
The new, compact, modern design and intuitive user interface of the OptoCheck Plus provide the simplest user experience available for measuring goal spherical and cylindrical refractive errors in addition to keratometry.
The full-color LCD screen, icon-based functioning system, and recognizable joystick controls enable any member of your staff to create quick and precise measurements. Measurement data may be seen on the color display, and results can be published together with the fast and quiet, built-in printer.
OptoCheck Plus FEATURES:
- Innovative reliability index gives you confidence in obtained readings
- Scotopic Pupil Size and Photopic Pupil Size modes adjust illumination to accommodate different lighting conditions
- Brilliant 5.7-inch color LCD
- Built-In storage compartment for extra paper
- Measurement Range:
- Sphere: -30D to +22D
- Cylinder: 0D to +/- 10D
- Axis: 0 degrees to 180 degrees
Slim and Elegant Design
Featuring a slim, ergonomic profile and compact footprint, the OptoCheck Plus saves valuable space and fits seamlessly into existing pre-test rooms and office settings. It even has a small storage compartment located on its top for convenient stowing of essential supplies and accessories.

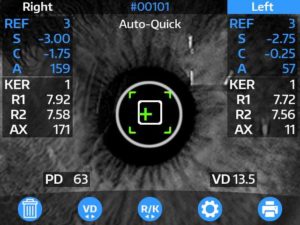

Simple User Interface and Touch Screen Display
The 5.7” full-color LCD touchscreen monitor displays intuitive icons with incredible visibility. The display has the capability of pivoting on a 50 vertical axis and 30 horizontal axis so that the OptoChek™ Plus can be easily configured to accommodate any operator.
An adjustable chinrest and redesigned joystick make it easy for any practitioner to correctly position the patient for accurate, comfortable measurements. For even greater efficiency, Auto-Quick Measurement Mode reduces the amount of time needed to obtain the measurement and greatly increases patient throughput.
The innovative Reliability Index takes into account all factors of the measurement process so you can be confident in the accuracy of your readings.
IOL Measurement Mode
The new IOL measurement mode allows for measurements on patients with intraocular lens implants or cataracts to be obtained without difficulty. It can obtain measurements on patients with intraocular lens implants or cataracts with the new IOL measurement mode with ease.
Wide Measurement Range
Accurately and continuously obtain wide-ranging measurements of Sphere (-30 to +22 Diopters), Cylinder (0 to ± 10 Diopters), and Axis (0º to 180º).
Photopic and Scotopic Mode
Scotopic Pupil Size (SPS) and Photopic Pupil Size (PPS) modes adjust the illumination to assess the accommodation for different lighting conditions.
Pupillary distance (PD) is automatically measured after reading both eyes, increasing efficiency, and patient throughput.
Data Output Options
Data output options include a built-in printer and RS-232C interface that can be configured to send data to your EMR or any Reichert Digital Phoroptor for quick and immediate results. Easily connect the OptoChek Plus to an entire Reichert digital lane, for a completely connected exam and increased practice efficiency.
Refractive Measurement Range:
Sphere: -30D to +22D (in case VD=12) (Step: 0.12/0.25D)
Cylinder: 0 to ± 10D (Step: 0.12/.25D)
Axis angle: 1 to 180° (Step: 1°)
Keratometric Measurement Range:
Radius of curvature: 5.0 to 10.0 mm (Step: 0.01 mm)
Corneal Power: 33.75 to 67.5D (Corneal refractive n=1.3375) (Step: 0.12/0.25D)
Degree of corneal astigmatism: 0 to ±10D (Step: 0.12/0.25D)
Axis angle: 1 to 180° (Step: 1°)
Pupil Diameter Measurement:
Measurement Range: 2.0 to 8.5 mm (Step: 0.01 mm)
Measurement Range: 85 mm (Step: 1 mm)
Vertex Distance: 0, 10, 12, 13.5, 15 mm
Minimum Pupil Diameter: 2.0 mm
Printer: Thermal line printer (Paper width: 58 mm)
Output Port: Serial RS-232C port for connecting to EMR/EHR and other devices
Internal Display: 145 mm (5.7 inches) color LCD monitor
Positioning Range of Measurement Unit:
Front/ Back: ±22 mm
Right/ Left: ±43 mm
Up/ Down: ±17 mm
Vertical Adjustment Range of Chinrest: ±30 mm
Weight, unpacked: 28.1 Kg (12.8 lbs)
Height: 46.4 cm (18.3 in.)
Width: 22.9 cm (9.0 in.)
Depth: 42.9 cm (16.9 in.)
Input Power: 100 to 240V @ 50/60Hz, 60 VA
Fuse: T2AL 250 VAC
Bluetooth Power Source: 5 VDC ± 5% @ 200 mA (typical)
Power Saving Function: OFF, 3, 5, 10 min. (switchable)
